Simplex Bucket Strainer

SS-Bucket-Strainer (1)
MS FILTERS

  1. Fabricated Construction
  2. One can use it at a very high temperature
  3. It requires less maintenance
  4. Customized for large dirt loads by suitable over sizing
  5. Large strainer baskets
  6. Both compact and high-capacity units are available
  7. Sturdy construction
  8. Durability
  9. Flexibility
  10. Superior performance
  11. Corrosion resistance


Bucket Strainer/Filter is generally used for separating coarse particles. Strainer elements are easy to remove and clean. We offered basket strainer with flow direction in to out or out to in as per dirt load and application. Bucket strainer design available with single strainer element, double cylinder type strainer element, multi strainer elements and pleated type strainer elements. Our Bucket Strainer in MS/CS MOC is available with Painted, hot dip galvanized and powder coated. Bucket strainer in SS MOC is available with mirror polished both side and glass bead blasting.

  1. Simplex Bucket/Basket Strainer
  2. Simplex Bucket/Basket Filter
  3. Multi Bucket/Basket Strainer
  4. Multi Bucket/Basket Filter
  5. Duplex Bucket/Basket Strainer
  6. Duplex Bucket/Basket Filter
  7. Jacketed Type Bucket Strainer/Filter
  8. Jacketed Type Duplex Bucket Strainer/Filter
  9. POT Type Strainer
  10. Y Type Strainer
  11. Conical Strainer
  12. T Type Strainer
  13. Self cleaning Filter

  1. Easy to clean
  2. Low Pressure drop
  3. Large area
  4. Easy to operate and maintenance
  5. Positive Sealing to prevent bypass
  6. Customized design
  7. High dirt load holding capacity
  8. In Standard design filtration area is 4 to 6 times of Inlet/Outlet pipe area
  9. Arrangement for back wash if required

  1. Refineries and Petrochemicals
  2. Power Plants
  3. Oil & Gas
  4. Water filtration and Cooling Towers
  5. Chemical Industries
  6. Automobile Industries
  7. Steel Industries, Metals & Minerals
  8. Textile Industries
  9. Dairy and Food Industries
  10. Dyes, Inks and paints Industries
  11. Cement Industries
  12. Fertilizers Industries
  13. Pharmaceuticals

Line Size¼” NB to 30” NB
End Connections150# & 300# Flanged, Table E & Table F Flanges, DIN Standard Flanges Butt Weld,NPT/BSP Threaded, Hose Pipe Conn., Tri Clover Adaptor, SMS Union/Dairy Conn.
Material of ConstructionCS, MS, SS304, SS304L, SS316, SS316L, SS317L
Operating Pressure0 to 50 Bar
Operating Temperature15℃ to 500℃
Flow RateUp to 1000 M3/Hr. & More
Filtration Rating1 Micron to 6000 Micron & More

Top cover with nut & bolts type or quick opening type

Leading Simplex Bucket Strainer Manufacturers in India

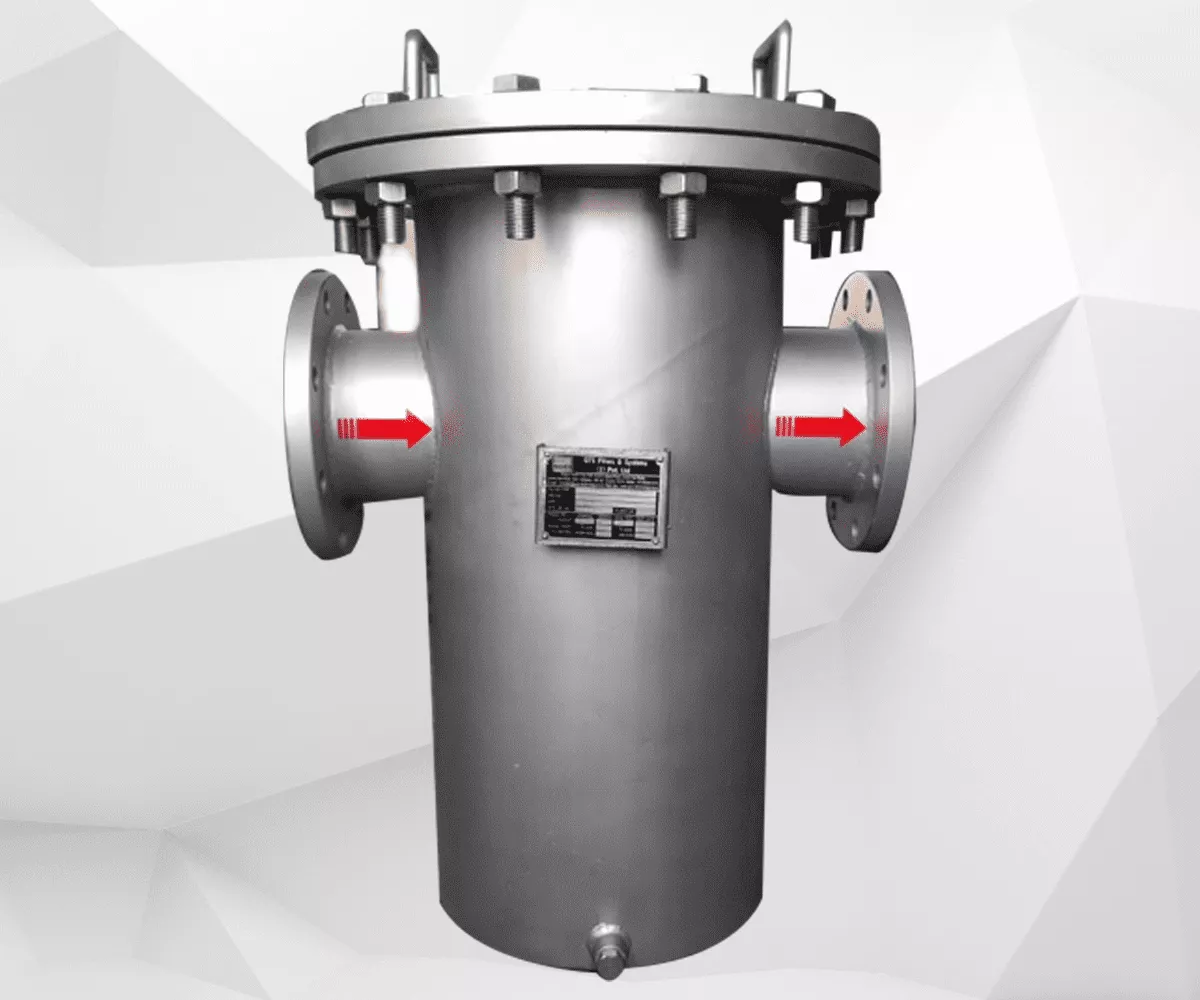

We are noted as one of the renowned SS Bucket strainer manufacturers. The SS Bucket Strainers that we manufacture are made from the finest quality of raw material and these strainers are customized in various sizes with different specifications according to customer’s requirement. These strainers are made of stainless steel filter mesh welded to a stainless steel container.These filters are designed for all sorts of filtering that one needs to do. They are undoubtedly the ultimate bucket strainer on the market. Our offered stainless steel filter elements are designed to work in high temperatures and in an extremely corrosive environment. Our range of elements can work efficiently up to the temperature of 500℃ and are easy to clean and are re-usable. They are made of stainless steel that makes it corrosion-resistant and increases its life span. Our manufactured strainers are completely welded, guaranteeing zero leakage. Buckets are fabricated from the stainless perforated sheet. The required degree of filtration is provided by welding the suitable grade of Stainless Steel mesh to the bucket. It can be installed in either a vertical or horizontal position. It can work in extreme pressure and temperature without damage.
